With increased power and durability, the Parker Torqmotor™ TG Series low speed high torque (LSHT) hydraulic motor is available in flange or wheel mounts. Torques to 12,600 lb-in and displacements to 58.5 cu in. Shaft sizes to 1.375-inch nominal.
The rugged TGK Series heavy duty hydraulic motor uses an extra heavy drive train in a standard size motor to deliver up to 19,000 lb-in torque, with intermittent pressure ratings to 4000 psi. Max dynamic side load capability is 3600 lb. at the key.
Get higher side-load capability up to 6000 lb. on flange mounts and 5200 lb. on wheel mounts. The TH Series motor has a 1.5 inch nominal shaft size. Torques to 13,100 lb-in and intermittent pressure up to 4000 psi.
The TJ Series marries the TE Series drive train with a larger, heavier duty roller bearing and shaft. This compact, economical wheel motor has intermittent pressures to 2750 psi and torques to 5700 lb-in. The shaft is 1.25 inch nominal.
The largest Torqmotor, the TK Series is available in flange and wheel mounts. Torques to 23,500 lb-in, intermittent pressures to 4500 psi. Side loads to 7500 lb. on flange mounts, 9,400 lb. on wheel mounts. Shaft size 1.5-inch nominal.

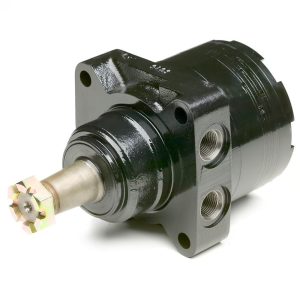

The compact TL Series wheel motor has reduced length but still plenty of power. Intermittent pressures are 3500 psi, torques to 10,300 lb-in. Side load capacity 3600 lb. at key. Shaft size is 1.25 inch nominal.
Parker GOLD CUP® Pumps & Motors ensure high performance in severe-duty applications. With a robust design, they operate to pressures up to 6,000 psi & speeds up to 3,600 rpm. Before the 2004 acquisition, the product line was known as Denison Gold Cup.
HRST1 series of heat-resistant compact hydraulic cylinders for 16MPa that can be used up to an ambient temperature of 150 ℃. The bore size is φ32 to φ80.
140L-1 series – 14MPa tube flange type double acting hydraulic cylinders with bores size from φ63 to φ160 applicable to strokes length from 200 to 3,000 mm. The use of more durable mounting accessories than those of 140H-8.
